TECHNICAL DATA

INFORMATION FOR architectS AND builderS


Scroll down to view typical technical illustrations of the SIPS panels.

Not for construction, always refer to the engineers details.

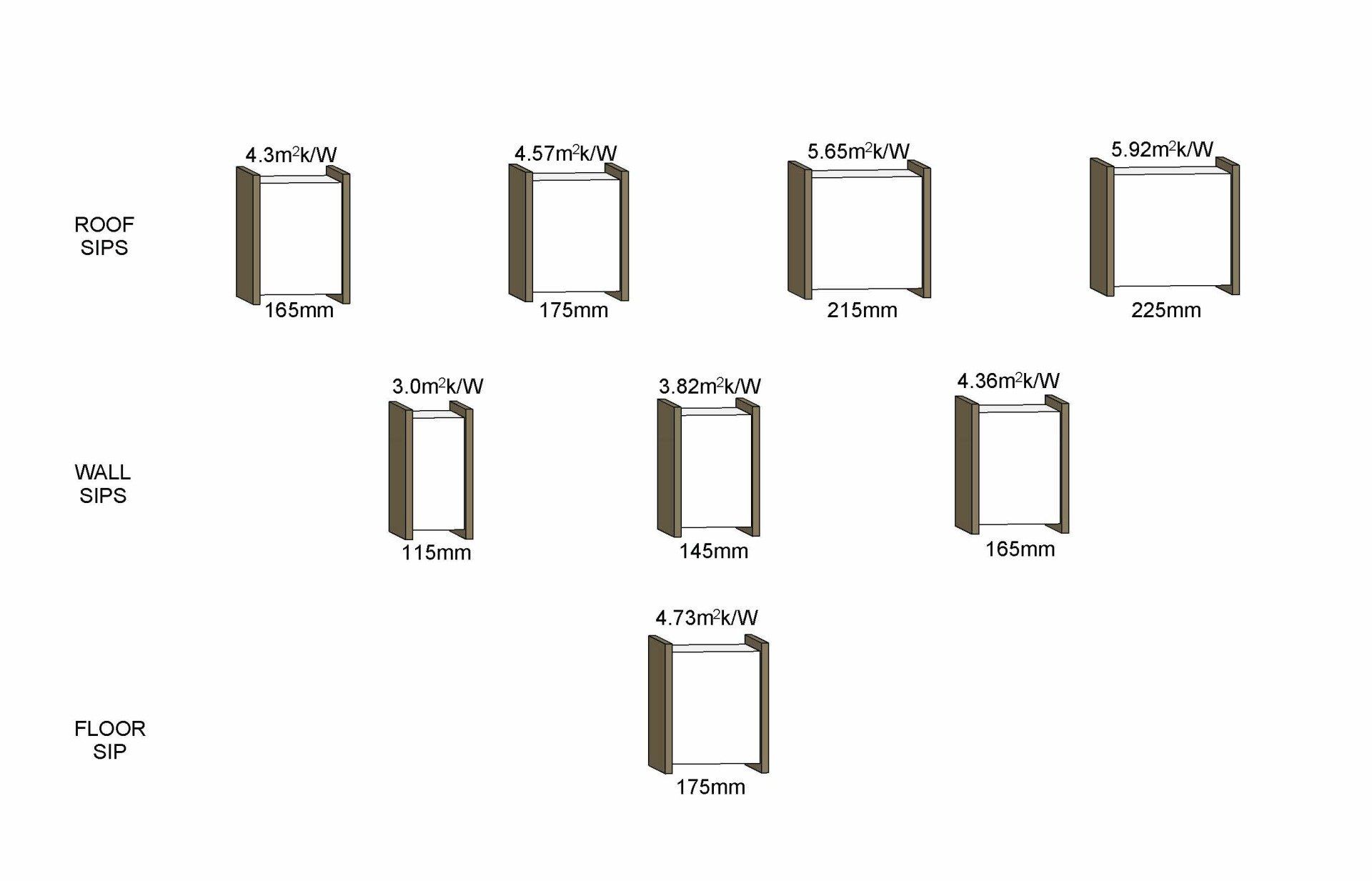

Size Perspective

Thermal Rating

Typical Technical Illustrations

Click on the + to view typical technical illustrations of the SIPS panels.

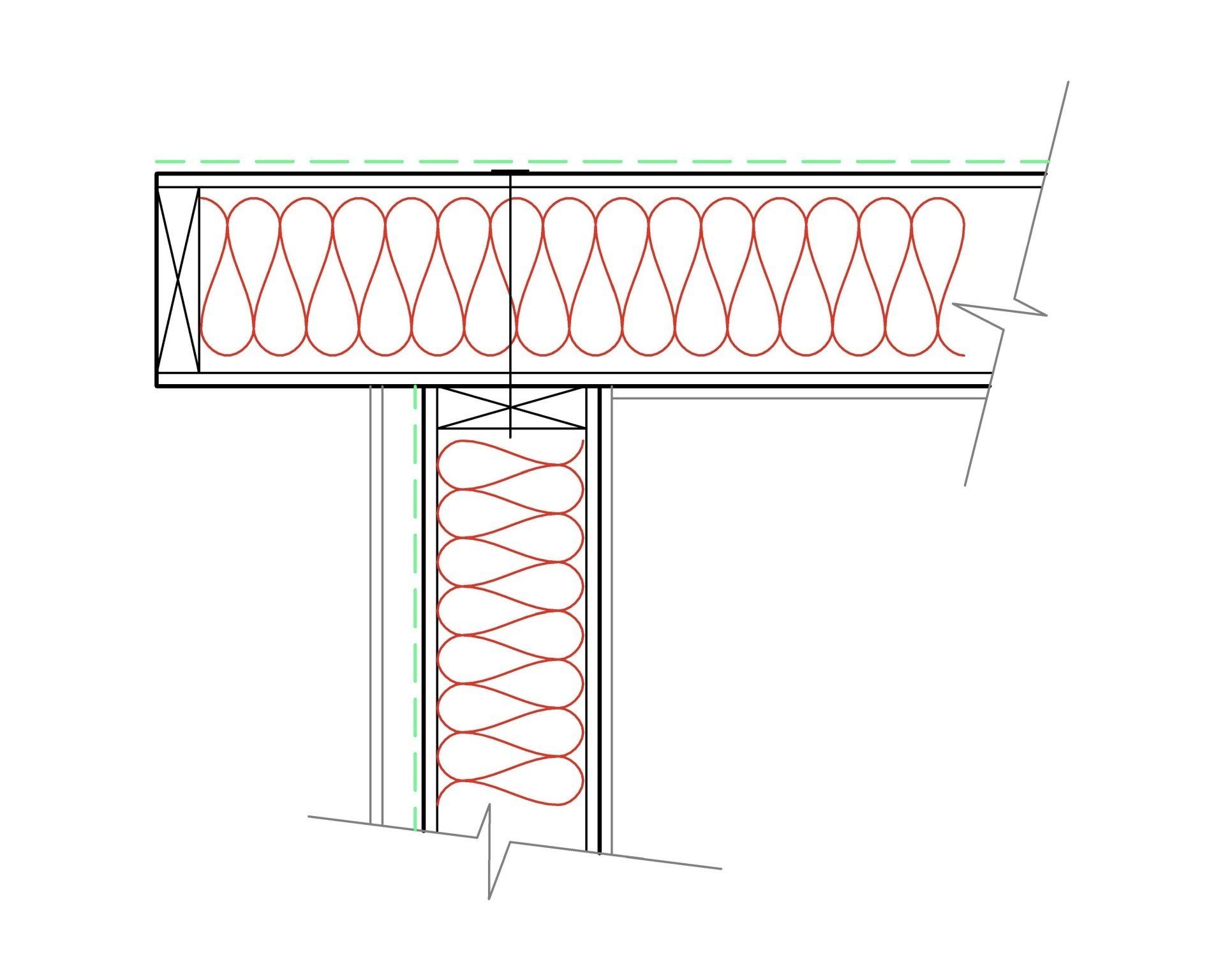

Typical SIP Barge Detail
Typical SIP Barge Detail
Typical SIP Barge Detail

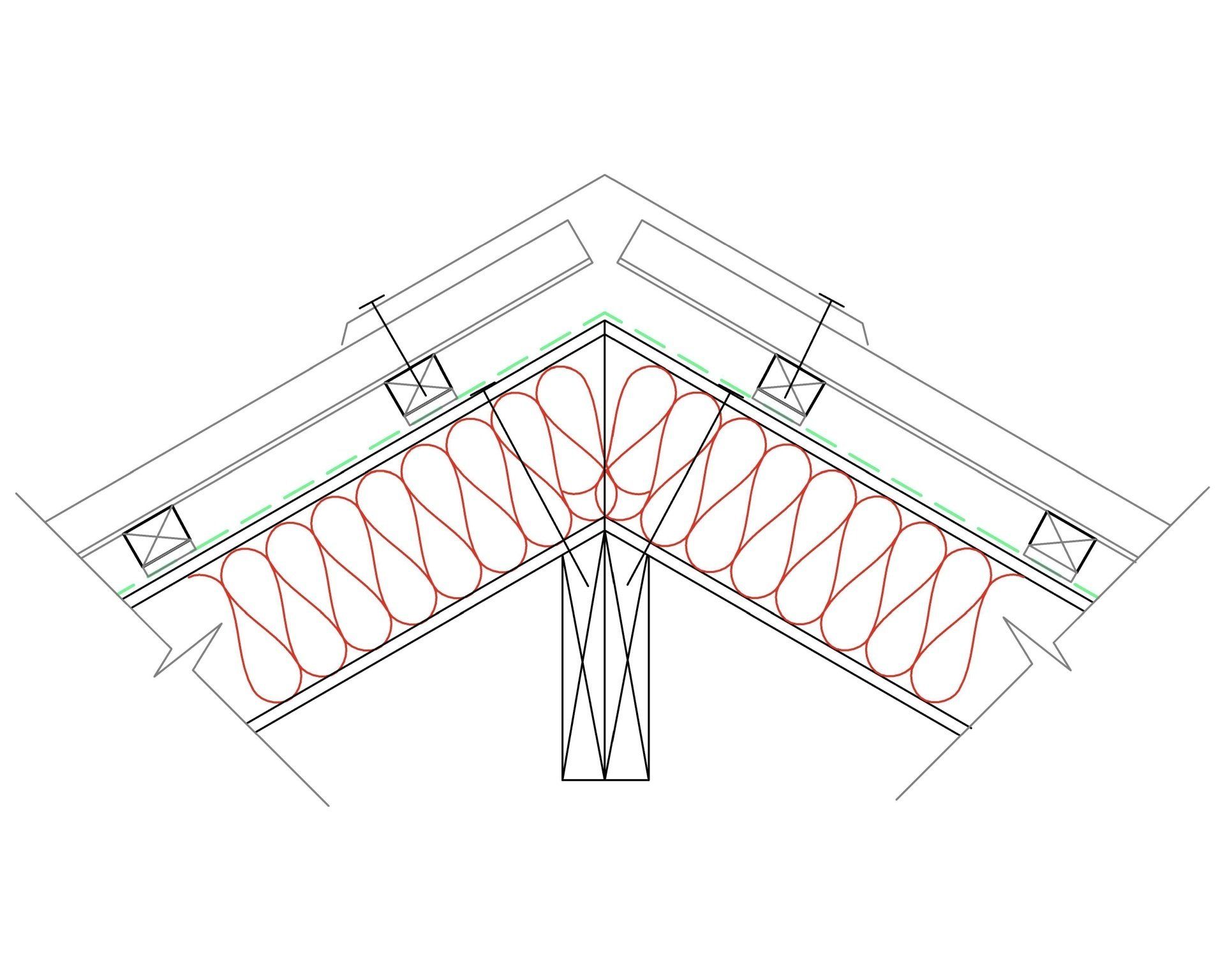

Typical SIP Ridge Detail
Typical SIP Ridge Detail
Typical SIP Ridge Detail

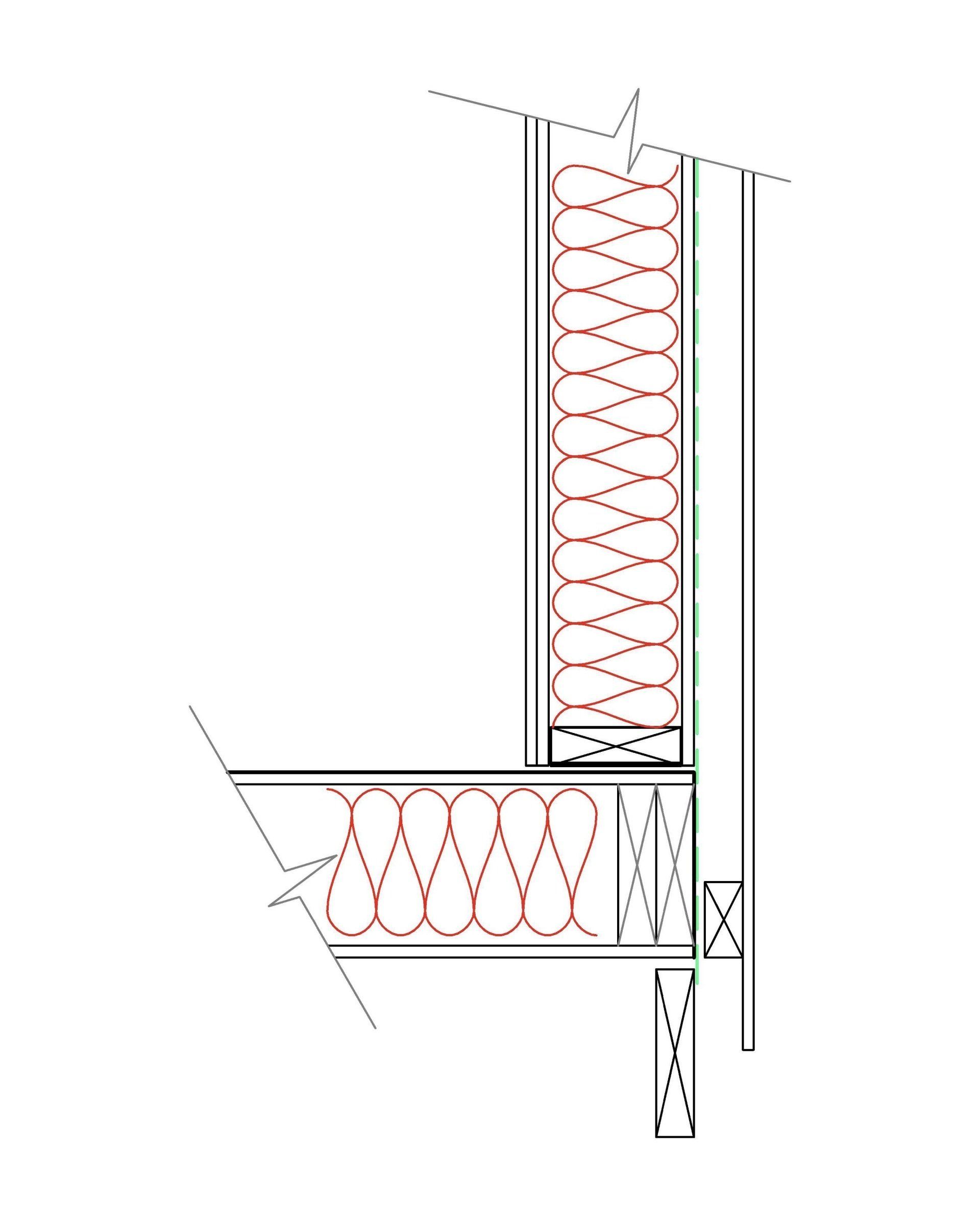

Typical SIP Base Plate to SIP Floor
Typical SIP Base Plate to SIP Floor
Typical SIP Base Plate to SIP Floor

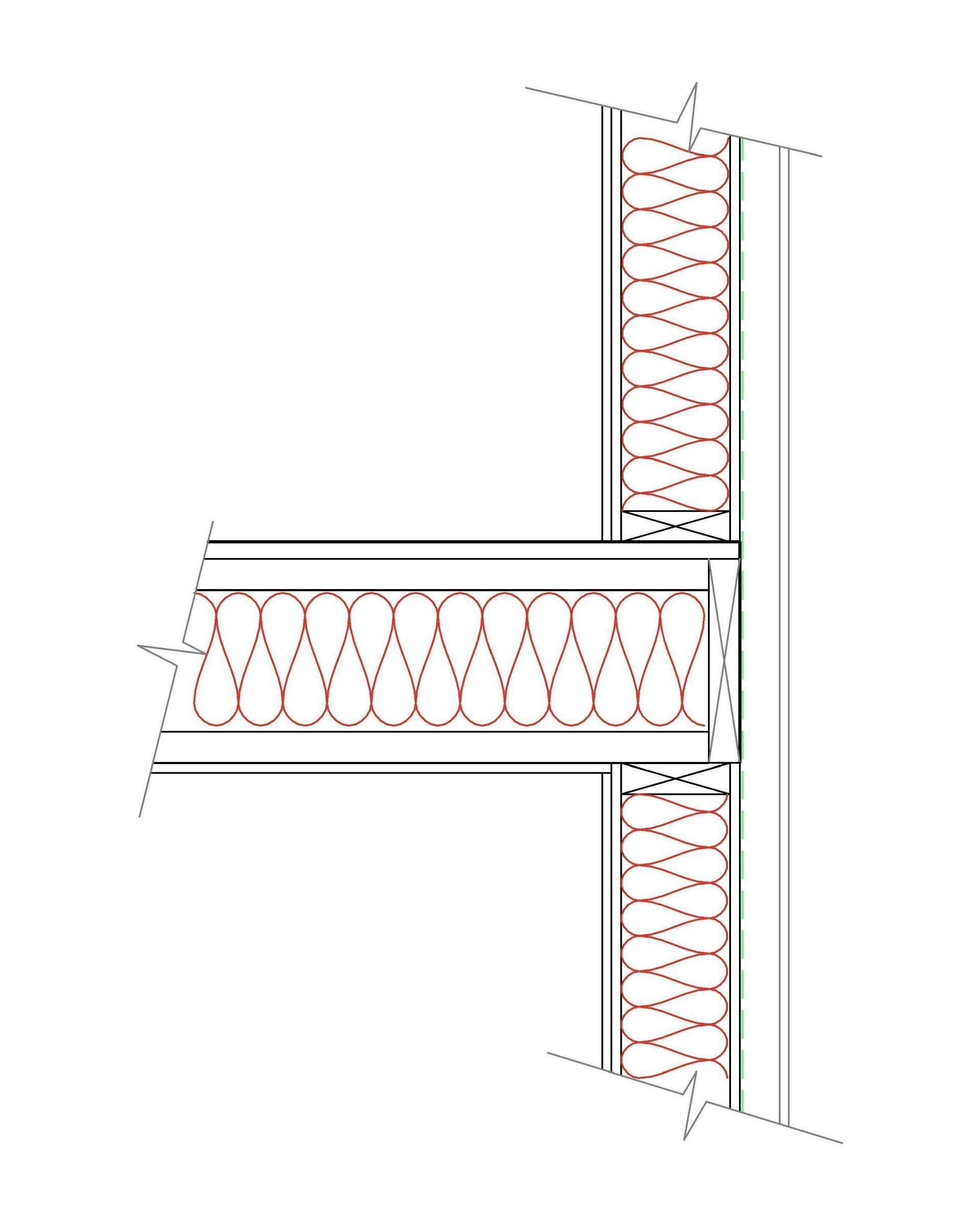

Typical Intermediate Floor Joist Detail
Typical Intermediate Floor Joist Detail
Typical Intermediate Floor Joist Detail

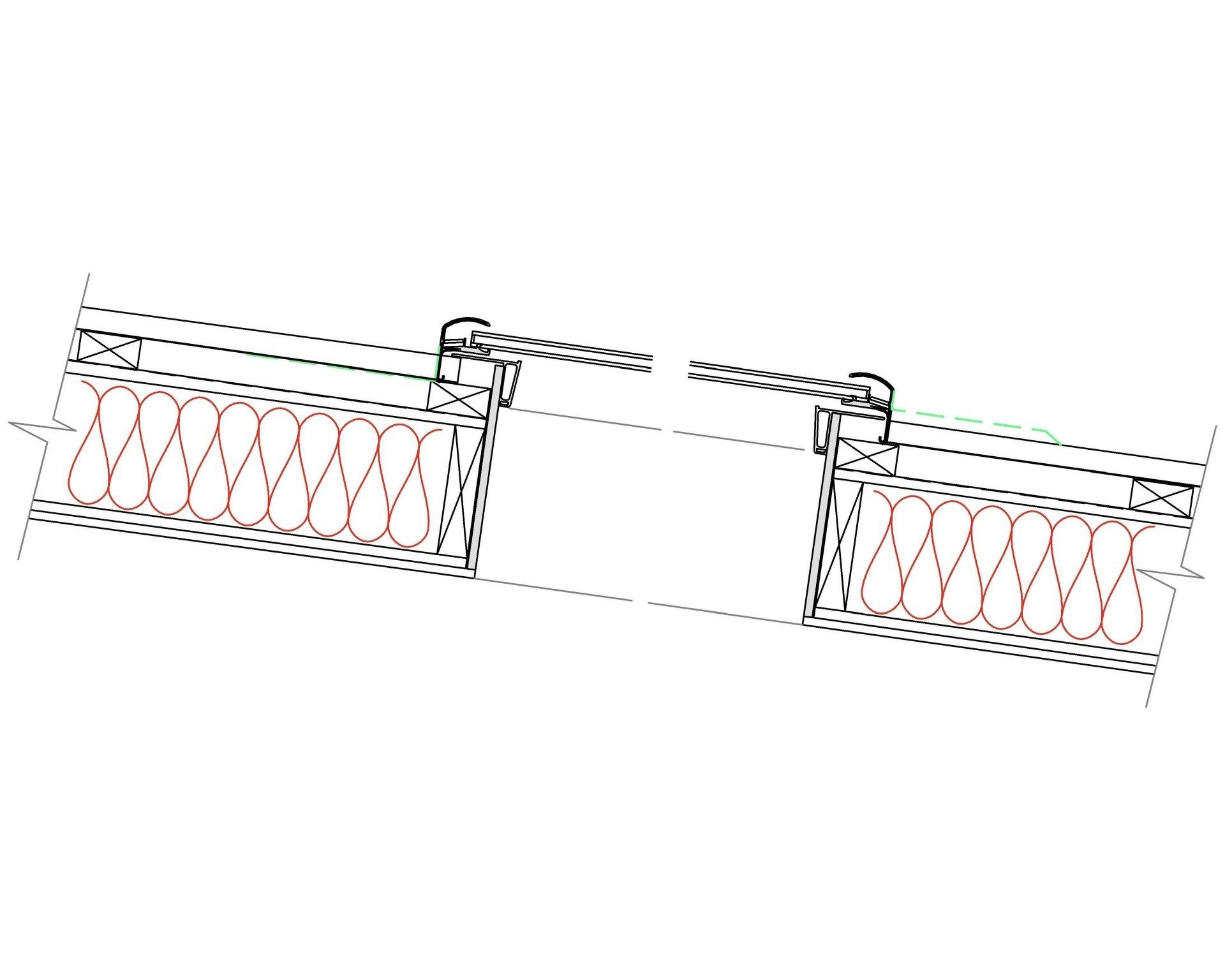

Typical SIP Roof Light Detail
Typical SIP Roof Light Detail
Typical SIP Roof Light Detail

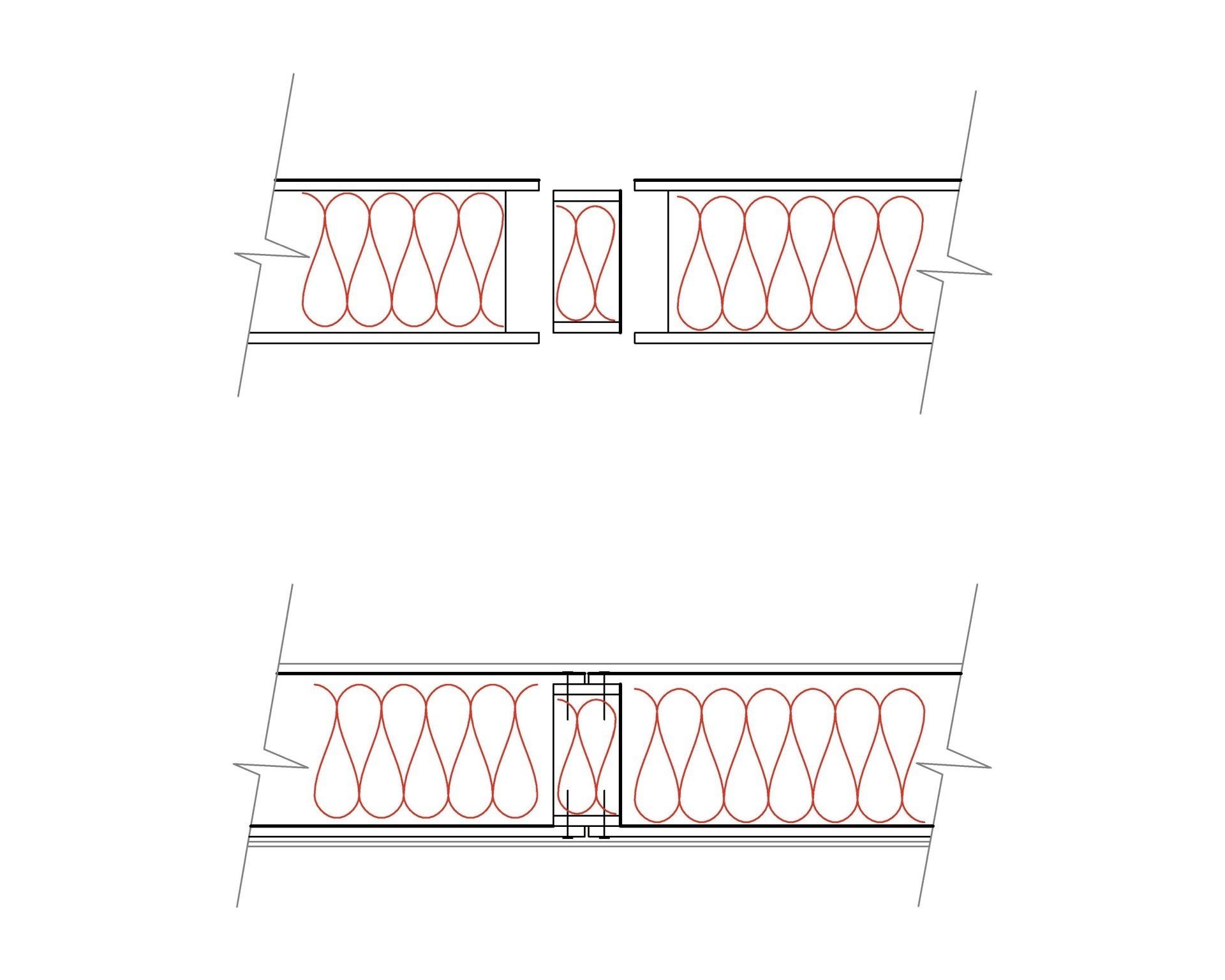

Typical SIPs Thermal Spline Joint
Typical SIPs Thermal Spline Joint
Typical SIPs Thermal Spline Joint

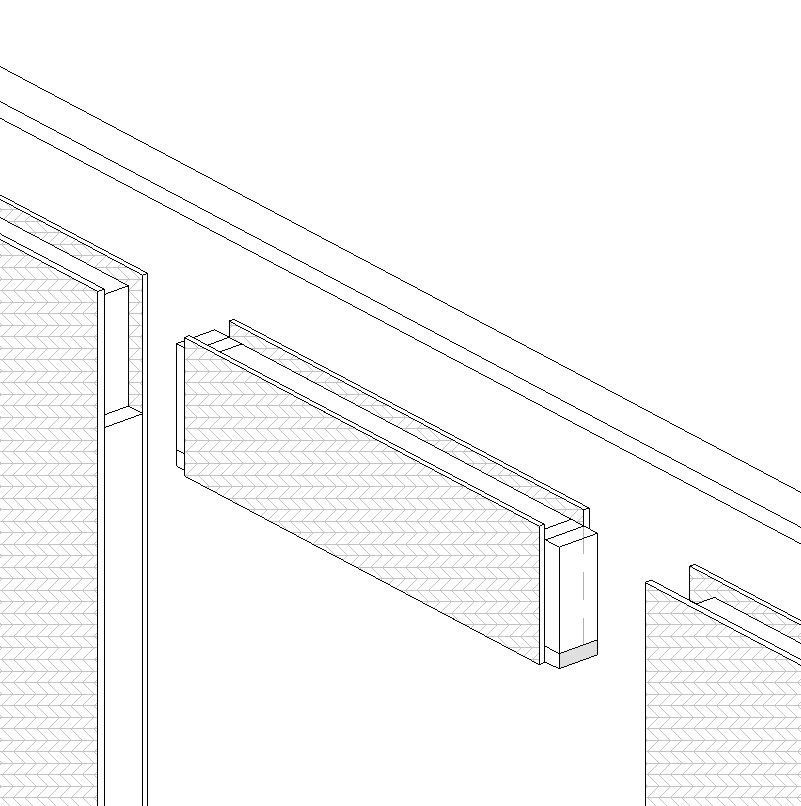

Typical SIPs Lintel
Typical SIPs Lintel
Typical SIPs Lintel

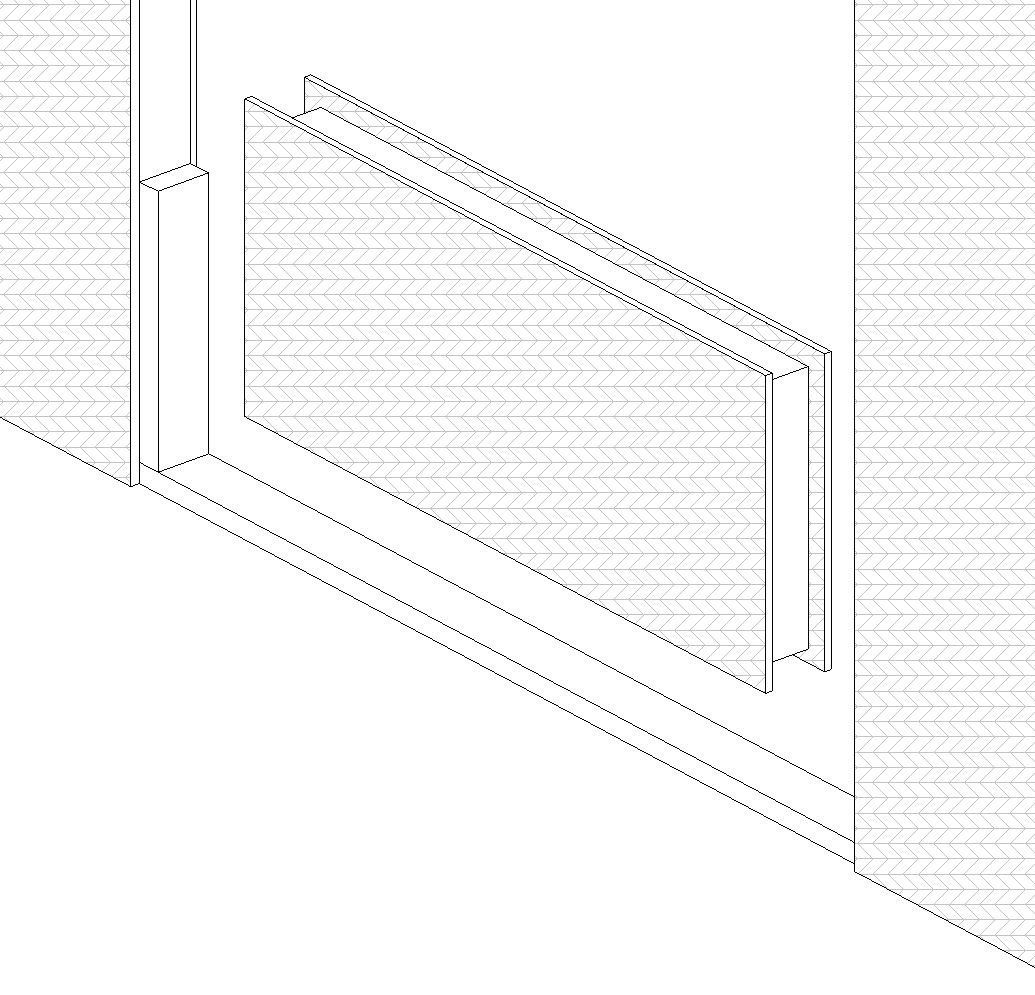

Typical SIPs Sill Detail
Typical SIPs Sill Detail
Typical SIPs Sill Detail

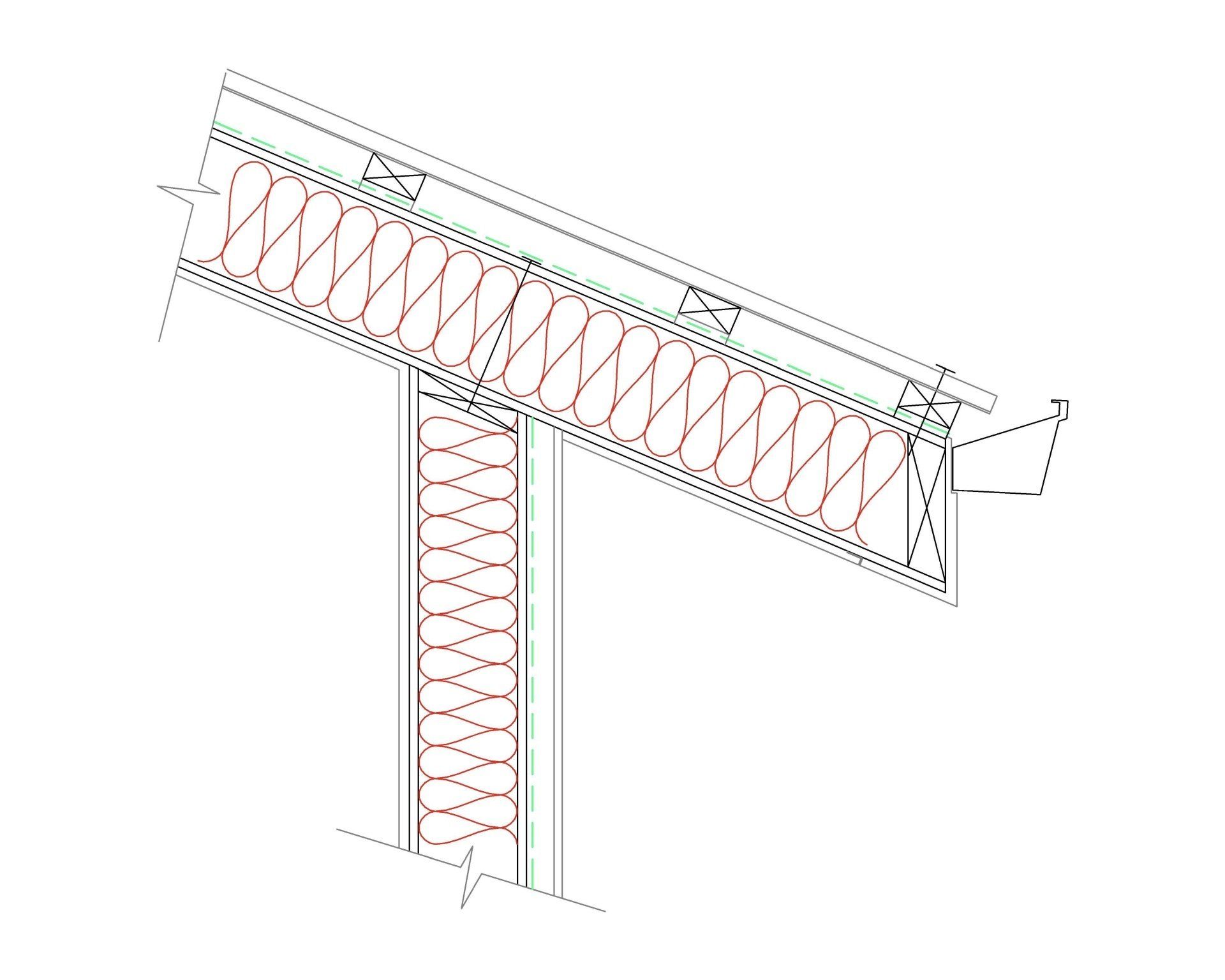

Typical SIP Eave Detail
Typical SIP Eave Detail
Typical SIP Eave Detail

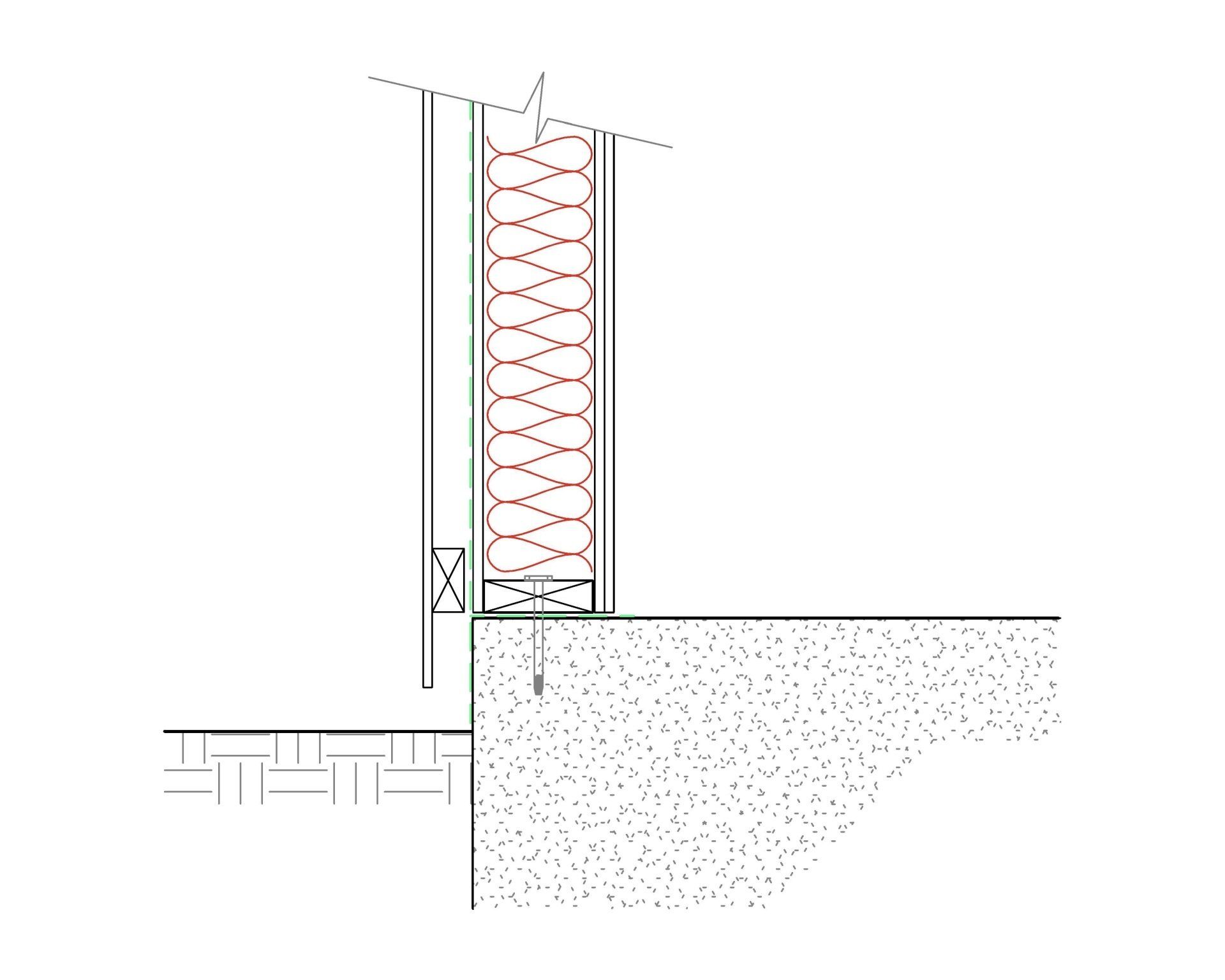

Typical SIP Base Plate to Concrete
Typical SIP Base Plate to Concrete
Typical SIP Base Plate to Concrete
